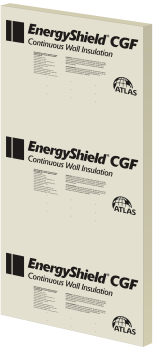

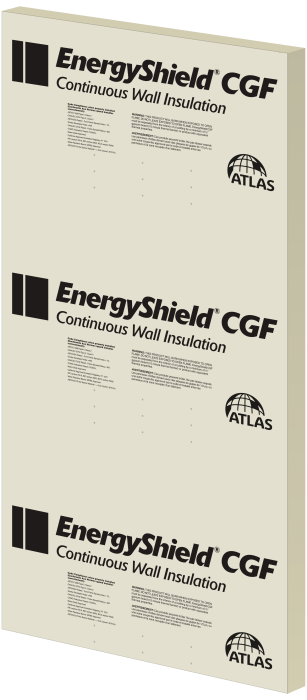

Rigid Board Atlas Roofing Foil Faced 48"X96"X2" 32SF
Rigid Board Atlas Roofing Foil Faced 48"X96"X2" 32SF
Atlas EnergyShield CGF is a high-performance continuous insulation board composed of a closed-cell polyisocyanurate foam core with patented coated glass-mat facers on both sides. It is manufactured using environmentally responsible processes and formulations, containing no CFCs, HCFCs or HFCs, resulting in Zero Ozone Depletion Potential (ODP) and Negligible Global Warming Potential (GWP). EnergyShield is GREENGUARD Gold certified and contributes to LEED credits. Boards are available in sizes 4' x 8' or 4' x 9' and thickness from 0.5" - 4".
ATLAS® Insulation Board, EnergyShield® CGF Series, 2 in Thickness, 4 ft Width, 8 ft Length, Glass Mat Facing, R-Value: R-12.1, -100 to 250 deg F, 20 psi Compressive Strength, Flexural Strength: 40 psi, Wall Installation, Polyisocyanurate
| Compressive Strength | : | 20 psi |
| Coverage Area | : | 32 sq-ft |
| Facing Type | : | Glass Mat |
| Flexural Strength | : | 40 psi |
| Installation Type | : | Wall |
| Length | : | 8 ft |
| Material | : | Polyisocyanurate |
| R-Value | : | R-12.1 |
| Series | : | EnergyShield® CGF Series |
| Temperature Rating | : | -100 to 250 deg F |
| Thickness | : | 2 in |
| Width | : | 4 ft |
- Exterior framed walls with wood or steel studs
- Exterior framed walls with or without sheathing
- Air and water resistive barrier when installed accordingly
- Exterior walls of masonry or concrete
- Attics and crawlspaces without requiring a thermal barrier
