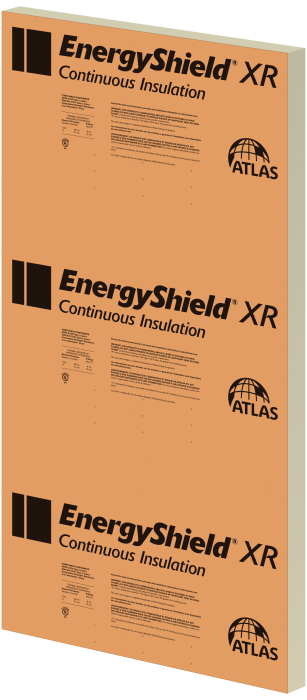

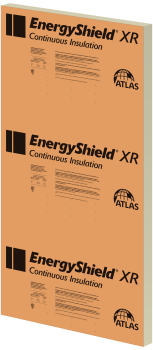

Rigid Board Atlas Roofing Foil Faced 48"X96"X1.55" 32SF
Rigid Board Atlas Roofing Foil Faced 48"X96"X1.55" 32SF
Atlas EnergyShield XR is designed for above and below grade applications to help improve energy efficiency and interior comfort in both commercial and residential properties. It is manufactured using environmentally responsible processes and formulations, containing no CFCs, HCFCs or HFCs, resulting in Zero Ozone Depletion Potential (ODP) and Negligible Global Warming Potential (GWP). EnergyShield XR is GREENGUARD Gold certified and contributes to LEED credits.
ATLAS® Insulation Board, EnergyShield® XR Series, 1.55 in Thickness, 4 ft Width, 8 ft Length, Foil Facing, R-Value: R-6.5, Density: 2 pcf, -100 to 250 deg F, 25 psi Compressive Strength, Flexural Strength: >50 psi, Polyisocyanurate
| Compressive Strength | : | 25 psi |
| Coverage Area | : | 32 sq-ft |
| Density | : | 2 pcf |
| Facing Type | : | Foil |
| Flexural Strength | : | >50 psi |
| Length | : | 8 ft |
| Material | : | Polyisocyanurate |
| R-Value | : | R-6.5 |
| Series | : | EnergyShield® XR Series |
| Temperature Rating | : | -100 to 250 deg F |
| Thickness | : | 1.55 in |
| Width | : | 4 ft |
- Under slab and below grade exterior foundation walls
- Available scored at 16" and 24" o.c
- Above grade exterior walls
- Standard Compression Strength of 25 psi
