Rigid Board Atlas Roofing Foil Faced 48"X96"X1.5" 32SF
Rigid Board Atlas Roofing Foil Faced 48"X96"X1.5" 32SF

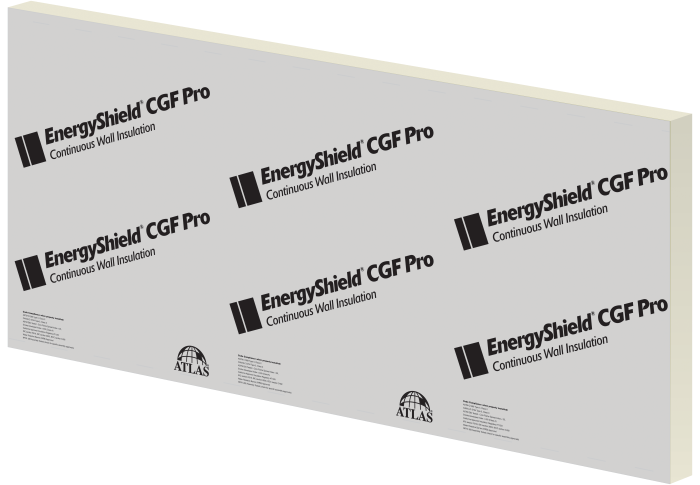

Atlas EnergyShield CGF Pro is a high-performance continuous insulation board composed of a closed-cell polyisocyanurate foam core with patented coated glass-mat facers on both sides. One side is dark gray for use in open joint rain screen applications. It is manufactured using environmentally responsible processes and formulations, containing no CFCs, HCFCs or HFCs, resulting in Zero Ozone Depletion Potential (ODP) and Negligible Global Warming Potential (GWP). EnergyShield CGF Pro is GREENGUARD Gold certified and contributes to LEED credits. Boards are available in sizes 4' x 8' or 4' x 9' and thickness from 0.5" - 4".
ATLAS® Insulation Board, EnergyShield® CGF Pro Series, 1-1/2 in Thickness, 4 ft Width, 8 ft Length, Glass Mat Facing, R-Value: R-9, -100 to 250 deg F, 25 psi Compressive Strength, Flexural Strength: 40 psi, Wall Installation, Polyisocyanurate
| Compressive Strength | : | 25 psi |
| Coverage Area | : | 32 sq-ft |
| Facing Type | : | Glass Mat |
| Flexural Strength | : | 40 psi |
| Installation Type | : | Wall |
| Length | : | 8 ft |
| Material | : | Polyisocyanurate |
| R-Value | : | R-9 |
| Series | : | EnergyShield® CGF Pro Series |
| Temperature Rating | : | -100 to 250 deg F |
| Thickness | : | 1-1/2 in |
| Width | : | 4 ft |
- Exterior framed walls with wood or steel studs
- Exterior framed walls with or without sheathing
- Air and water resistive barrier when installed accordingly
- Exterior wall of masonry or concrete
- Attics and crawlspaces without requiring a thermal barrier
