Rigid Board Atlas Roofing Foil Faced 48"X96"X2.5" 32SF
Rigid Board Atlas Roofing Foil Faced 48"X96"X2.5" 32SF

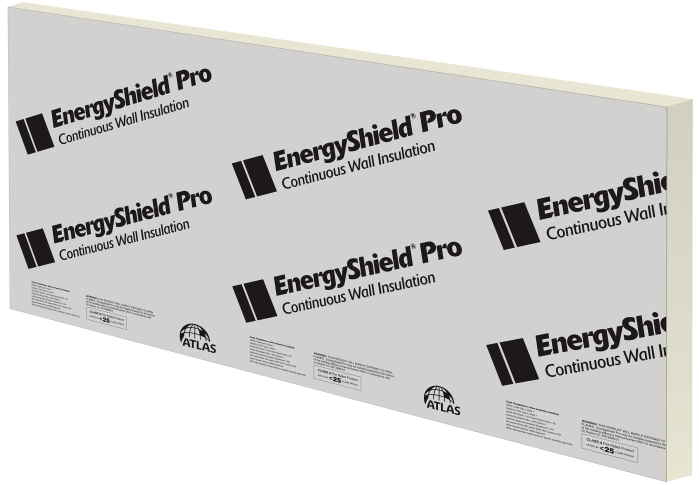

Atlas EnergyShield Pro is a high-performance continuous insulation board composed of a closed-cell polyisocyanurate foam core with a reflective aluminum foil facer on one side and a white acrylic-coated aluminum foil facer on the other. It is manufactured using environmentally responsible processes and formulations, containing no CFCs, HCFCs or HFCs, resulting in Zero Ozone Depletion Potential (ODP) and Negligible Global Warming Potential (GWP). EnergyShield Pro is GREENGUARD Gold certified and contributes to LEED credits. Standard insulation board dimensions are 4'x8' with custom lengths available.
ATLAS® Insulation Board, EnergyShield® Pro Series, 2-1/2 in Thickness, 4 ft Width, 8 ft Length, Foil Facing, R-Value: R-16, -100 to 250 deg F, 25 psi Compressive Strength, Flexural Strength: 40 psi, Wall Installation, Polyisocyanurate
| Compressive Strength | : | 25 psi |
| Coverage Area | : | 32 sq-ft |
| Facing Type | : | Foil |
| Flexural Strength | : | 40 psi |
| Installation Type | : | Wall |
| Length | : | 8 ft |
| Material | : | Polyisocyanurate |
| R-Value | : | R-16 |
| Series | : | EnergyShield® Pro Series |
| Temperature Rating | : | -100 to 250 deg F |
| Thickness | : | 2-1/2 in |
| Width | : | 4 ft |
- Exterior framed walls with wood or steel studs
- Exterior framed walls with or without sheathing
- Available scored or precut widths for masonry cavity wall application
- Exterior walls of masonry or concrete
- Durable white facer for interior exposed walls or ceiling applications
- Air and water resistive barrier when installed accordingly
