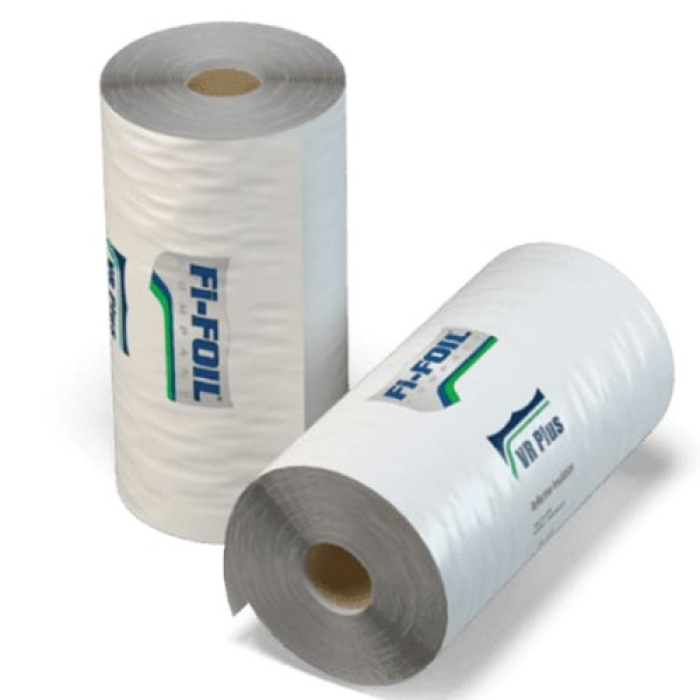

FI-FOIL® VR Plus Shield™ F-VRPLUS24500HPTT Multi-Layer Reflective Insulation
FI-FOIL® VR Plus Shield™ F-VRPLUS24500HPTT Multi-Layer Reflective Insulation
Fi-Foil's VR Plus Shield™ is a multi-layer reflective insulation intended for use on furred-out masonry walls. VR Plus Shield™ is formed by an outer layer of white kraft paper coated with polyethylene; a layer of natural kraft paper aluminium foil laminate ; and a layer of aluminum foil. Upon installation the three layers open using internal expanders. The internal airspaces range approximately 1/2 in. The thickness of the third airspace is dependent on the thickness of the furring strips. The Perforated version includes small perforations for applications not requiring a vapor retarder. VR Plus is available in both staple tab (for wood furring) and tape tab (for metal framing).
FI-FOIL Multi-Layer Reflective Insulation, 250 ft Length, 24 in Width, Aluminum Foil/Natural Kraft Paper, R-Value: R-5, Wall Installation, 500 sq-ft Coverage Area, Perforated, Tape Tab
| Additional Information | : | Perforated, Tape Tab |
| Color | : | White |
| Coverage Area | : | 500 sq-ft |
| Installation Type | : | Wall |
| Length | : | 250 ft |
| Material | : | Aluminum Foil/Natural Kraft Paper |
| R-Value | : | R-5 |
| Width | : | 24 in |
- Creates Three (3) Reflective Air Spaces
- Outer Layer of Natural Kraft Paper
- Inner Layers of Premium Grade Aluminum Foil
- FI-FOIL® Expander Technology Separates Paper and Foil Layers
- Perforated Version Allows Vapor Transmission in Hot-Humid Climates
- Quick Installation with Staple or Tape Tab
- Install on Wood Furring or Metal Framing
- Easily Combine with Other Mass Insulation as part of a Wall or Ceiling System
- Supports Sustainable Design
- Class A Flammability Rating
- Verified Recycled Content >20%
- Low-e Surfaces Blocks 97% of Radiant Heat Transfer to Improve the Performance of Enclosed Air Spaces
- Lowers HERS® and Other Energy Rating Indexes (ERI)
- High Performance and Compact
- Lightweight 500 sq ft Rolls
- Easy to Handle, Installs Faster
- Save Labor
- Save on Material and Shipping
- Save Warehouse Space
- Lowest Cost per R-value of All Masonry Wall Insulation
