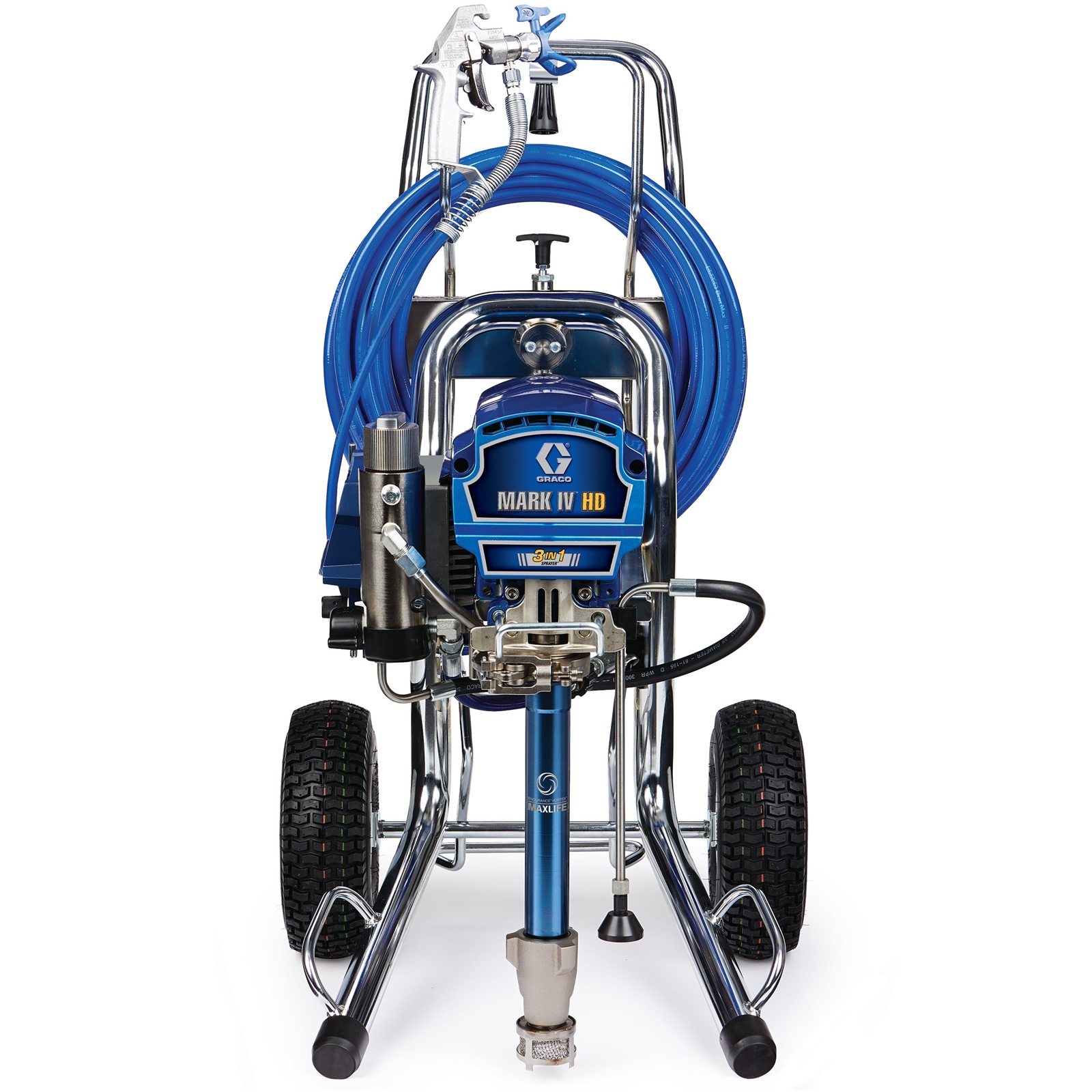

GRACO® 17E604 Airless Sprayer
GRACO® 17E604 Airless Sprayer
The Mark IV HD is designed to save time and money by allowing you to spray more square footage in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint. Work Smarter, Finish More Jobs. Mark HD ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.
GRACO Airless Sprayer, Electric, 15 A, 1641 W Wattage, 2.2 hp, Endurance Vortex MaxLife Piston Pump, ProConnect™ 2 Pump Mount, MaxPower DC Motor, 195 Cycles per Gallon, 3300 psi Working Pressure, 1.1 gpm Flow Rate, 0.033 in Tip, 1 Guns, 3/8 in Fluid Outlet, NPSM Fluid Outlet Thread, SmartControl 4.0 Pressure Control, Frame Configuration: Hi-Boy, 82 dBA Sound Level, 22-1/2 in Overall Width, 39 in Overall Height, 29-1/2 in Overall Depth
| Amperage Rating | : | 15 A |
| Cycles per Gallon | : | 195 |
| Flow Rate | : | 1.1 gpm |
| Fluid Outlet Size | : | 3/8 in |
| Fluid Outlet Thread Type | : | NPSM |
| Frame Configuration | : | Hi-Boy |
| HP Rating | : | 2.2 hp |
| Motor Type | : | MaxPower DC |
| Number of Guns | : | 1 |
| Overall Depth | : | 29-1/2 in |
| Overall Height | : | 39 in |
| Overall Width | : | 22-1/2 in |
| Power Source | : | Electric |
| Pressure Control Type | : | SmartControl 4.0 |
| Pump Mount Type | : | ProConnect™ 2 |
| Pump Type | : | Endurance Vortex MaxLife Piston |
| Sound Level | : | 82 dBA |
| Tip Size | : | 0.033 in |
| Wattage | : | 1641 W |
| Working Pressure | : | 3300 psi |
- Endurance Vortex MaxLife Piston Pump - Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
- MaxFlo 2 with Pack-Out Protection - Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- SmartControl 4.0 with ProGuard Protection System - Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- QuikReel Hose Management System - Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need - the rest stays on the reel
- ProConnect 2 Pump Replacement System - Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- FastFlush 2 System - Fast cleaning now even FASTER
