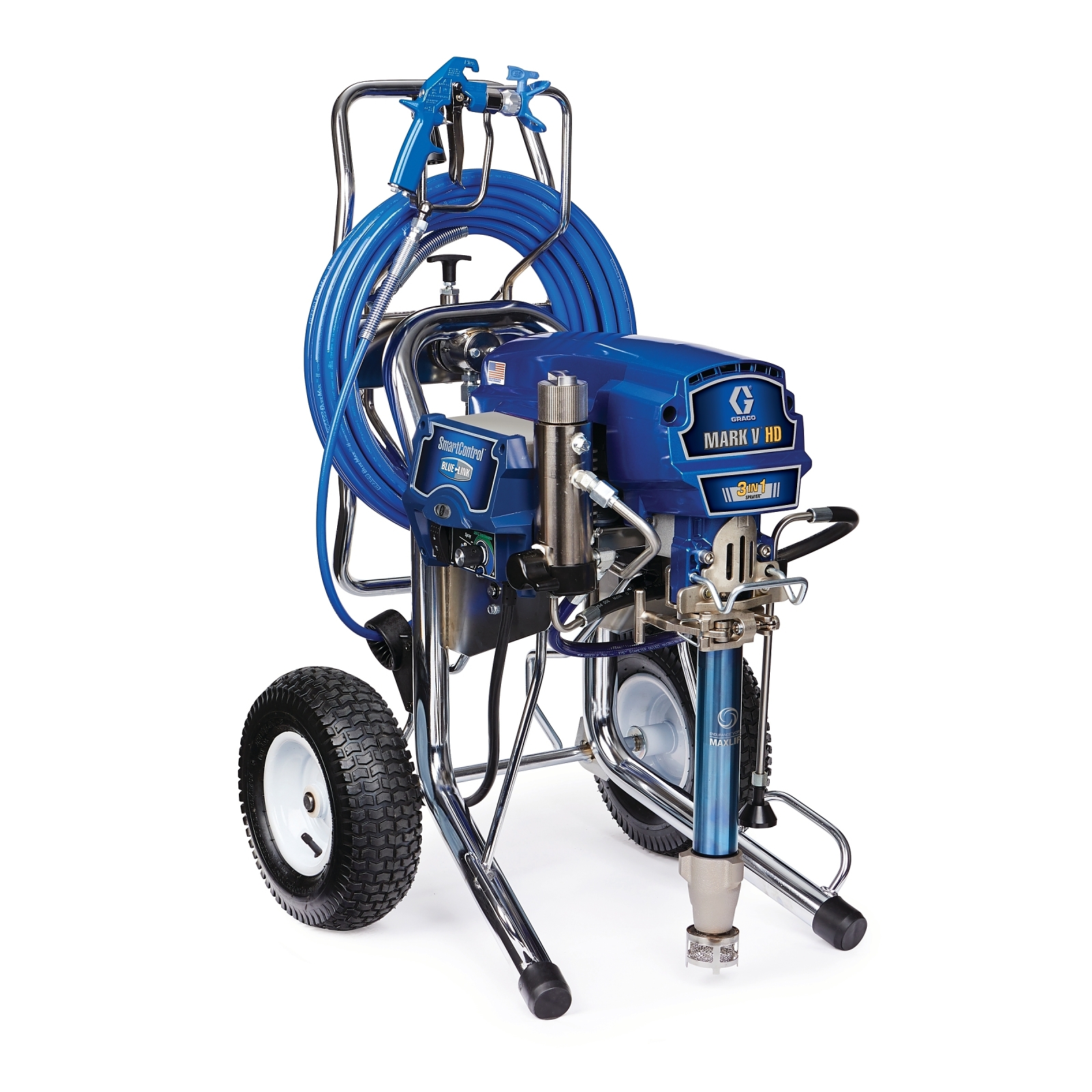

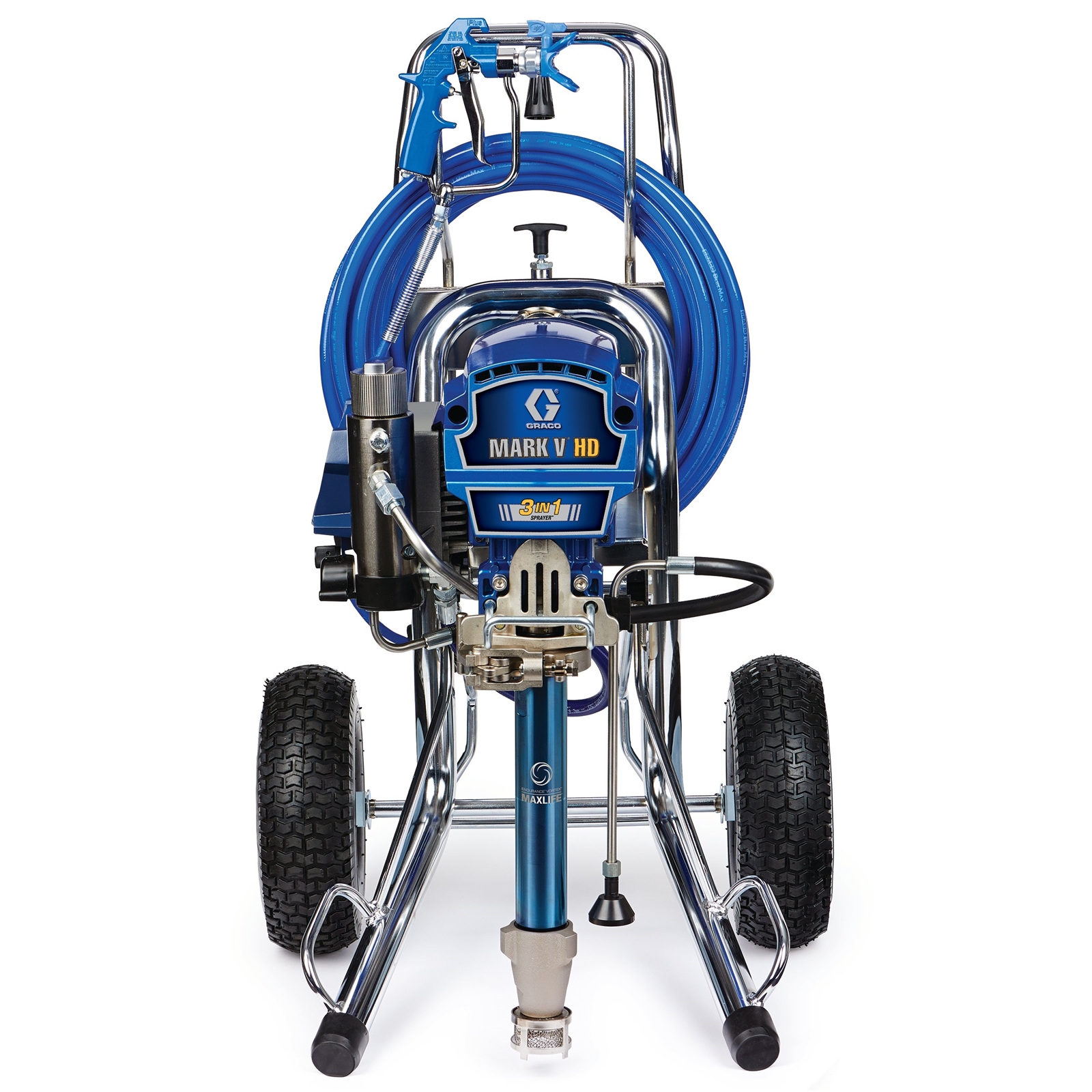

GRACO® MARK HD V Series 17E606 Airless Sprayer
GRACO® MARK HD V Series 17E606 Airless Sprayer
The Mark V HD delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV HD, this unit comes with an upgraded heavy-duty texture gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint. Work Smarter, Finish More Jobs. Mark HD ProContractor Series electric airless texture sprayers are designed to deliver speed and performance so you can get to the next jobsite faster and increase your profits.
GRACO® MARK HD V Airless Sprayer, Electric Power Source, 120 V, Amperage Rating: 20 A, Wattage: 5000 W, HP Rating: 2.8 hp, MaxLife Pump, Pump Mount Type: ProConnect 2, Motor Type: MaxPower, Cycles per Gallon: 110, Working Pressure: 3300 psi, 1.35 gpm Flow Rate, 0.039 in Tip, Number of Guns: 1, Fluid Outlet Size: 3/8 in, Fluid Outlet Thread Type: NPSM, 50 ft Hose Length, Pressure Control Type: SmartControl 4.0, Frame Configuration: Hi-Boy, 82 dBA Sound Level, Ceramic/Stainless Steel, 24 in Overall Width, 39 in Overall Height, 28 in Overall Depth
| Amperage Rating | : | 20 A |
| Cycles per Gallon | : | 110 |
| Flow Rate | : | 1.35 gpm |
| Fluid Outlet Size | : | 3/8 in |
| Fluid Outlet Thread Type | : | NPSM |
| Frame Configuration | : | Hi-Boy |
| HP Rating | : | 2.8 hp |
| Hose Length | : | 50 ft |
| Material | : | Ceramic/Stainless Steel |
| Motor Type | : | MaxPower |
| Number of Guns | : | 1 |
| Overall Depth | : | 28 in |
| Overall Height | : | 39 in |
| Overall Width | : | 24 in |
| Power Source | : | Electric |
| Pressure Control Type | : | SmartControl 4.0 |
| Pump Mount Type | : | ProConnect 2 |
| Pump Type | : | MaxLife |
| Series | : | MARK HD V |
| Sound Level | : | 82 dBA |
| Tip Size | : | 0.039 in |
| Voltage Rating | : | 120 V |
| Wattage | : | 5000 W |
| Working Pressure | : | 3300 psi |
- Great pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear longest life packings and piston rod long life ceramic and stainless steel balls included for maximum versatility
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal technology eliminates material build-up
- Continuous spraying with True Pack-Out protection for more productivity
- Optimized fluid passage ways for the heaviest coatings
- Streamline your business
- Track every sprayer, exact location and hourly productivity
- On demand productivity facts and reporting from anywhere
- Precision pressure control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme job site power conditions
- WatchDog pump protection system automatically prevents pump damage if material supply is too low
- Easy hose management
- Deploy and rewind up to 300 ft (90 m) of hose in seconds
- No twisting, kinking and coiling
- Use only the hose you need - the rest stays on the reel
- Eliminate costly downtime
