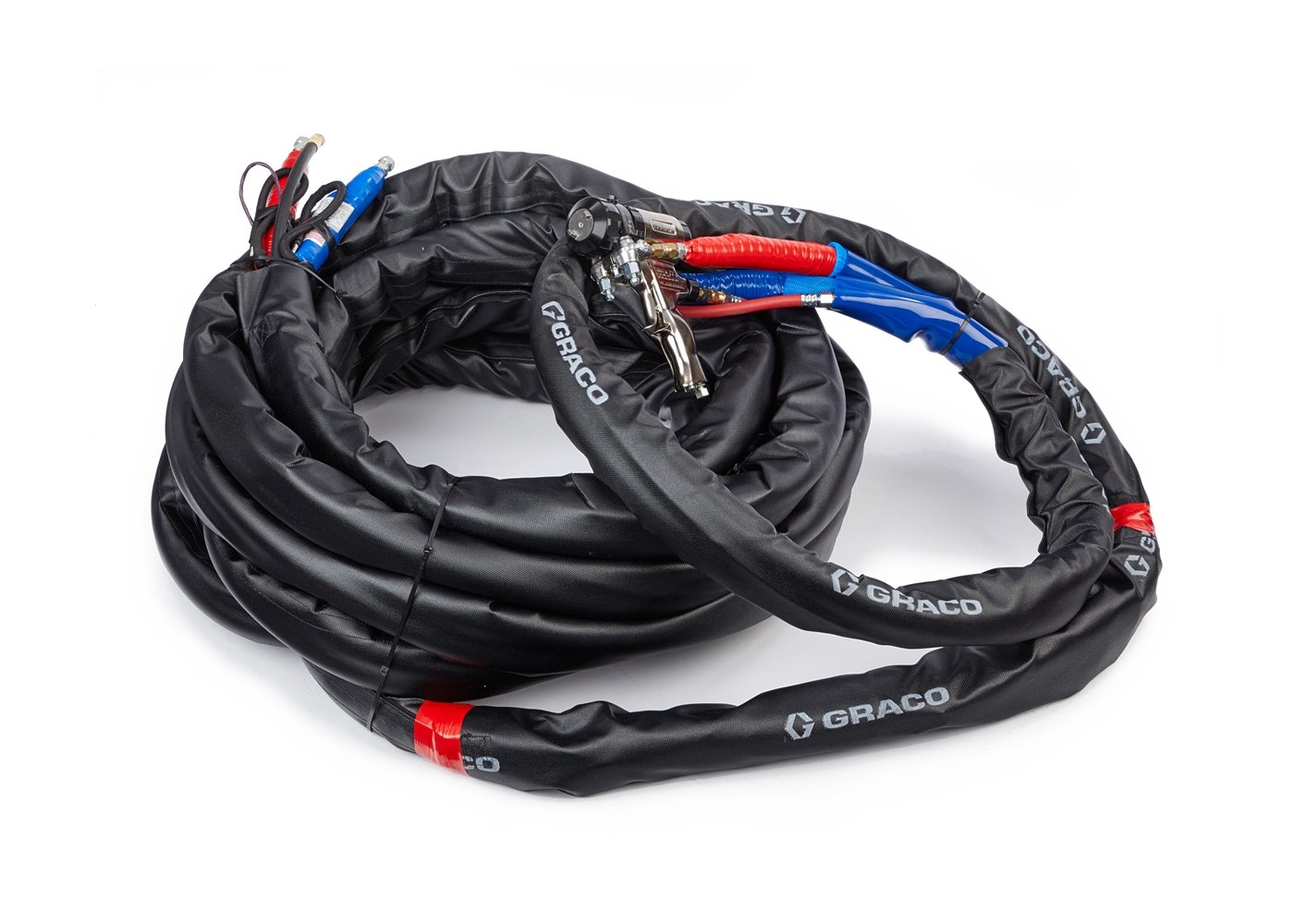

GRACO® Power-Lock™ 24Y240 External Heated Hose With Xtreme-Wrap™ Scuff Guard
GRACO® Power-Lock™ 24Y240 External Heated Hose With Xtreme-Wrap™ Scuff Guard
Manufacturer: Graco Inc
Brand Name: GRACO®
Part No.: GR24Y240
MPN: 24Y240
Min. Order Qty: 1
My Branch: Orlando FL
Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
GRACO External Heated Hose With Xtreme-Wrap™ Scuff Guard, 2000 psi Maximum Fluid Working Pressure, 130 psi Maximum Air Inlet Pressure, Wetted Parts: Nylon, 303 Stainless Steel, PTFE, Zinc-Plated Carbon Steel, Specifications: -5 JIC x -6 JIC Connection, 3/8 in ID Diameter, 50 ft Length, For Use With: Reactor® 2 Sprayers, Plural Component Proportioners, RTD Temperature Wire
| Additional Information | : | RTD Temperature Wire |
| Diameter | : | 3/8 in ID |
| Length | : | 50 ft |
| Maximum Air Inlet Pressure | : | 130 psi |
| Maximum Fluid Working Pressure | : | 2000 psi |
| Specifications | : | -5 JIC x -6 JIC Connection |
| Suitable For Use With | : | Reactor® 2 Sprayers, Plural Component Proportioners |
| Wetted Parts | : | Nylon, 303 Stainless Steel, PTFE, Zinc-Plated Carbon Steel |
- New multi-strand copper heating element has greatly increased hose quality - Provides 10-times the flex life compared to previous flat copper heating element. Long-term, even heating without hot spots. Backwards compatible with existing Reactor heated hoses

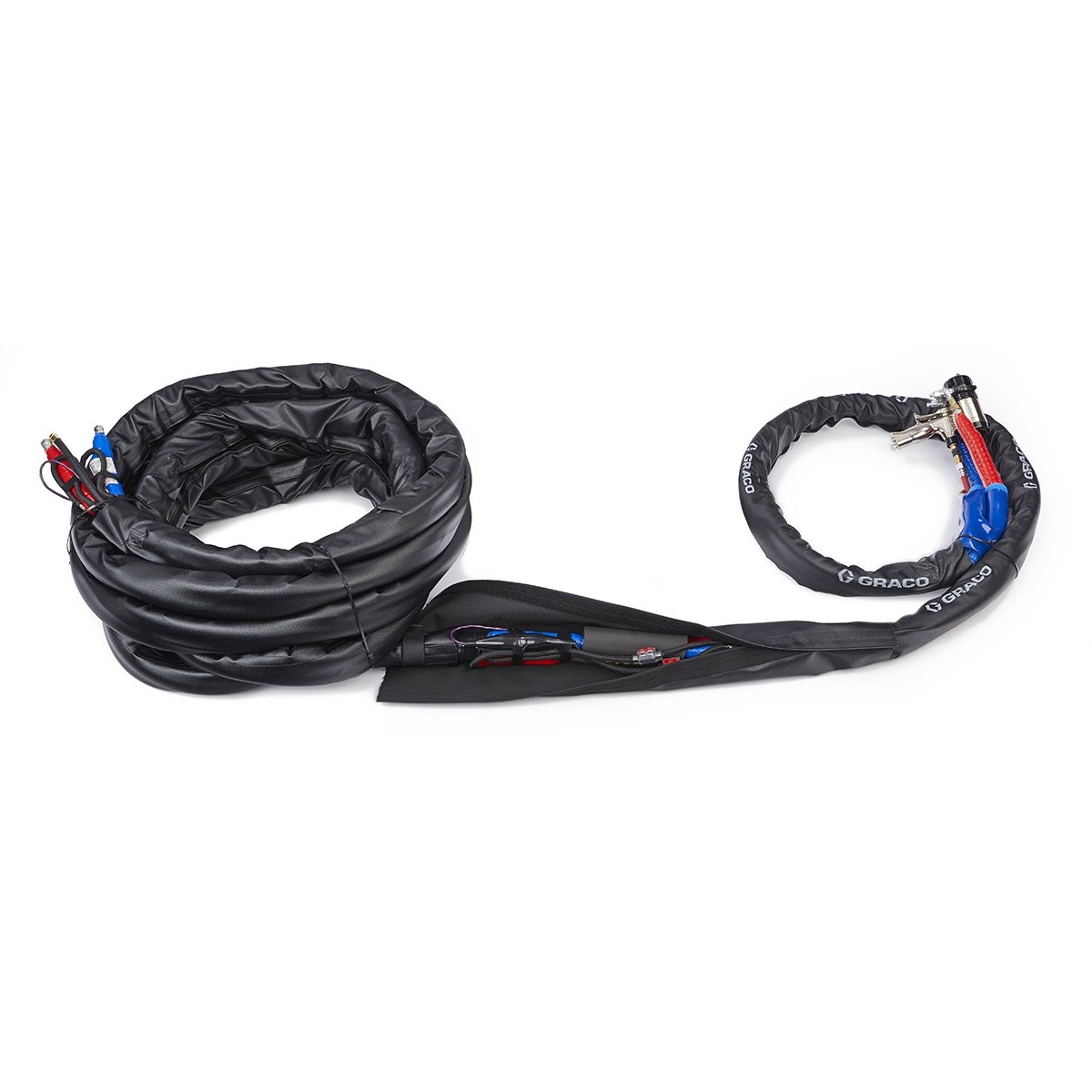

- New Xtreme-Wrap Scuff Guard - Form fitting to the hose, no more baggy excess material. Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance. Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures. Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors

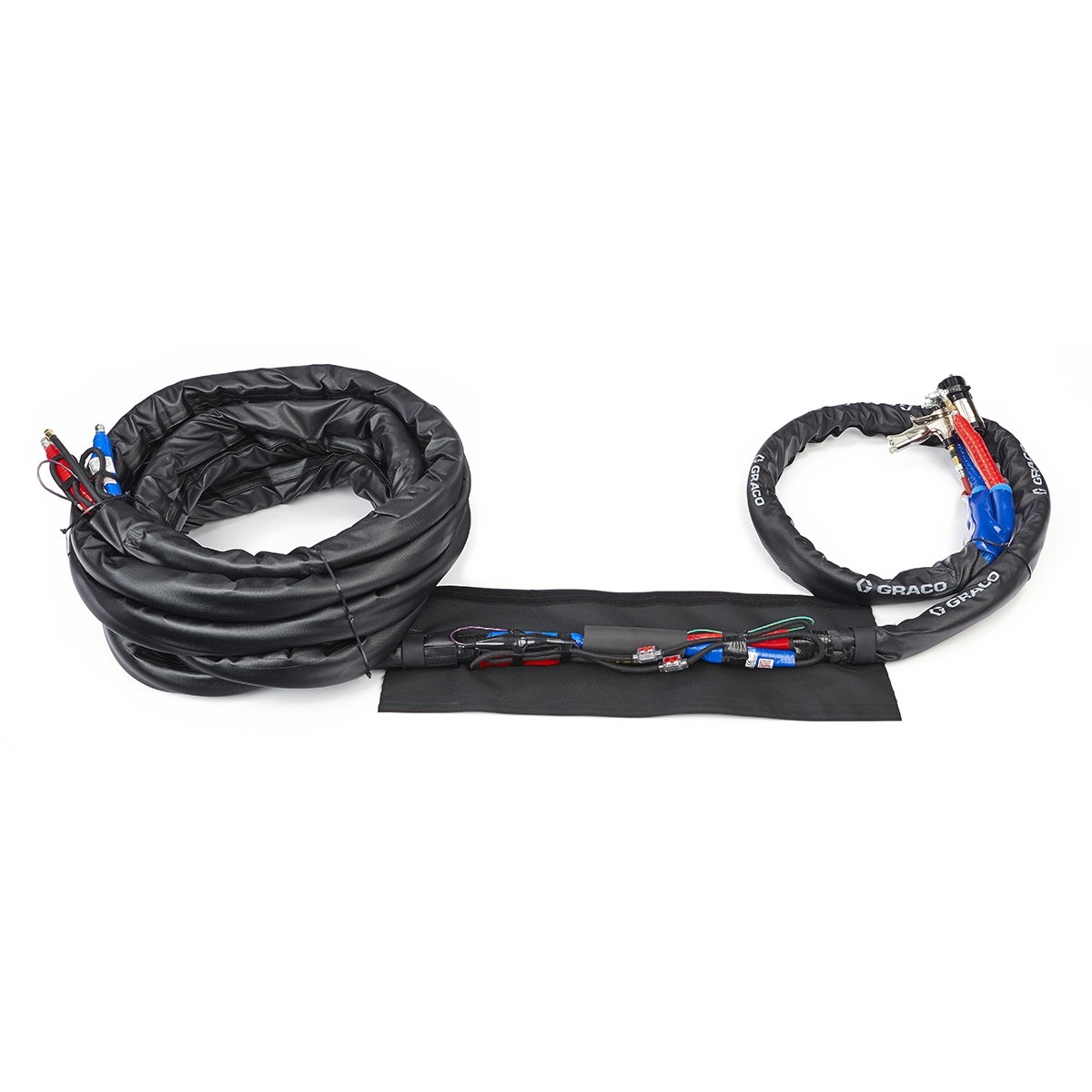

- Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
- Hoses are covered with foam insulation for heat retention
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
- Resistance Temperature Detector (RTD) - Graco's latest advanced controls on Reactor 2 and Integrated Reactor utilize RTD technology. RTDs offer the highest accuracy and the best day-to-day repeatability of material temperatures in your hose. RTD technology allows the machine to automatically shut down if the sensor is damaged, which saves wasted time and materials.
