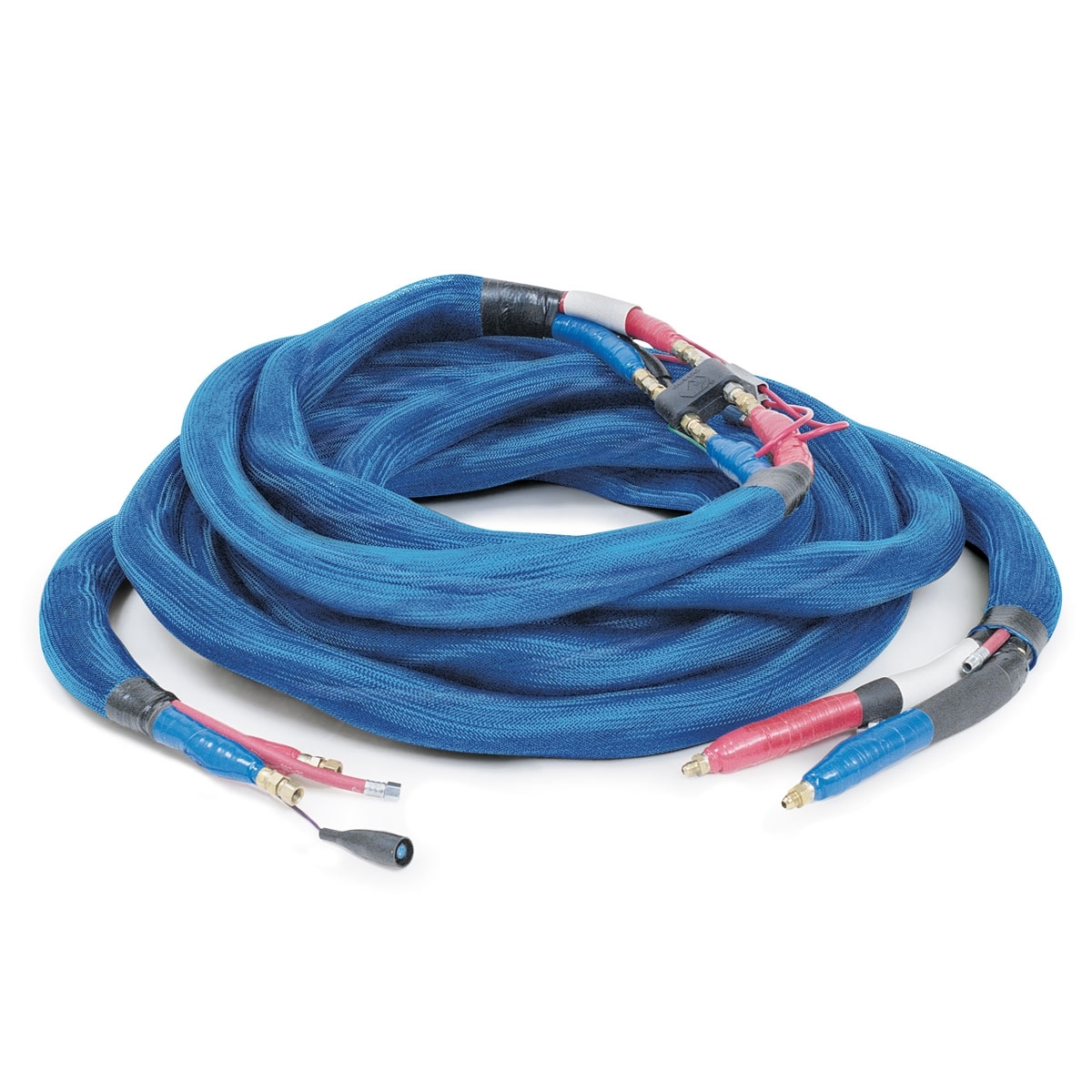

GRACO® Power-Lock™ 256549 External Heated Hose With Mesh Scuff Guard
GRACO® Power-Lock™ 256549 External Heated Hose With Mesh Scuff Guard
Manufacturer: Graco Inc
Brand Name: GRACO®
Part No.: GR256549
MPN: 256549
Min. Order Qty: 1
My Branch: Orlando FL
Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
GRACO External Heated Hose With Mesh Scuff Guard, 2000 psi Maximum Fluid Working Pressure, 130 psi Maximum Air Inlet Pressure, Wetted Parts: Nylon, 303 Stainless Steel, PTFE, Zinc-Plated Carbon Steel, Specifications: -5 JIC x -6 JIC Connection, 3/8 in ID Diameter, 50 ft Length, For Use With: Reactor® 1 and 2 Sprayers, Plural Component Proportioners, Without Cable
| Additional Information | : | Without Cable |
| Diameter | : | 3/8 in ID |
| Length | : | 50 ft |
| Maximum Air Inlet Pressure | : | 130 psi |
| Maximum Fluid Working Pressure | : | 2000 psi |
| Specifications | : | -5 JIC x -6 JIC Connection |
| Suitable For Use With | : | Reactor® 1 and 2 Sprayers, Plural Component Proportioners |
| Wetted Parts | : | Nylon, 303 Stainless Steel, PTFE, Zinc-Plated Carbon Steel |
- New multi-strand copper heating element has greatly increased hose quality - Provides 10-times the flex life compared to previous flat copper heating element. Long-term, even heating without hot spots. Backwards compatible with existing Reactor heated hoses
- Copper-heated hoses are designed specifically for use with Graco proportioners
- Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
- Hoses are covered with foam insulation for heat retention
- Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
- Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
- Helix-design whip hose uses braided copper wires for added flexibility and longer life
