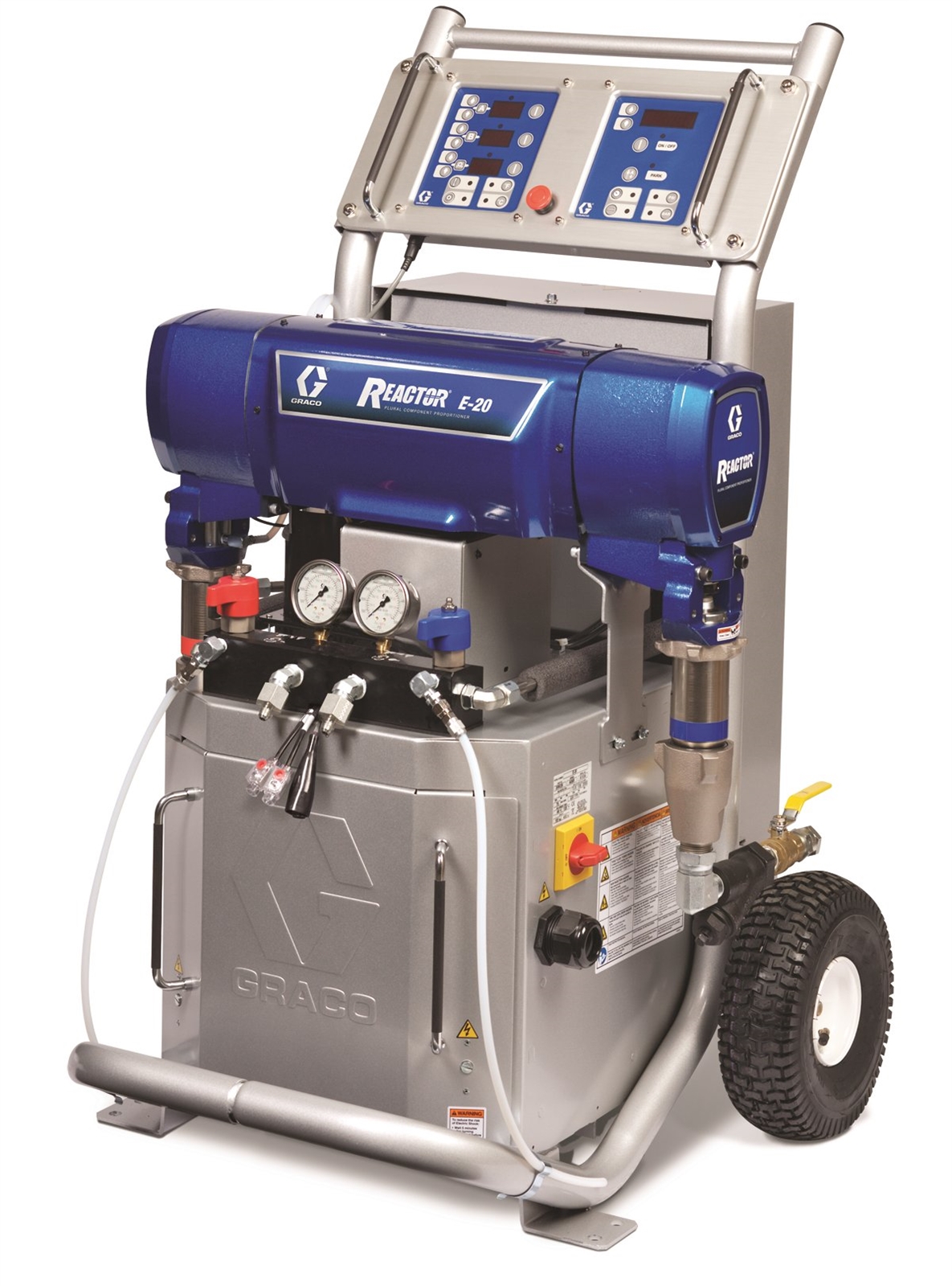

GRACO® E-20 Series FP9025 Proportioner Package
GRACO® E-20 Series FP9025 Proportioner Package
Manufacturer: Graco Inc
Brand Name: GRACO®
Part No.: GRFP9025
MPN: FP9025
Min. Order Qty: 1
My Branch: Orlando FL

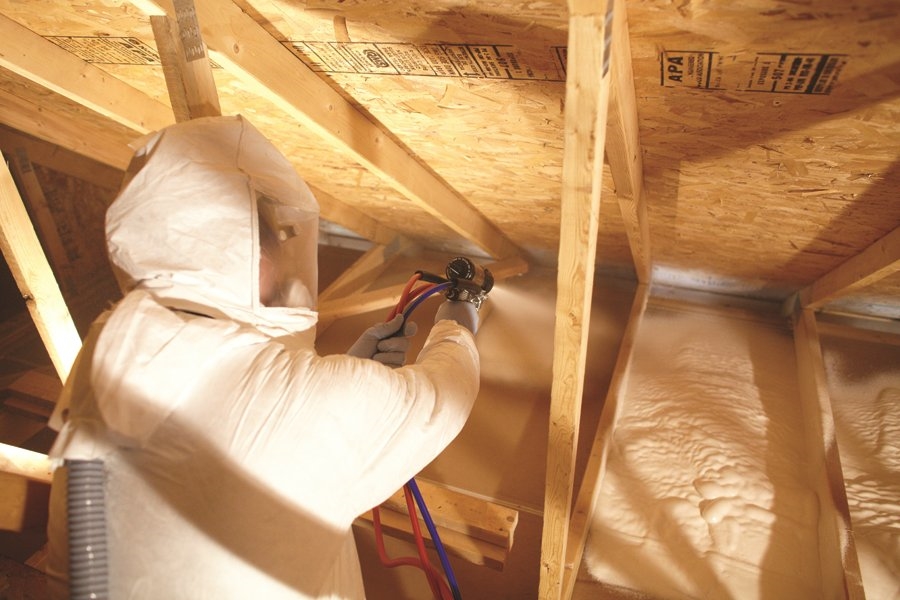

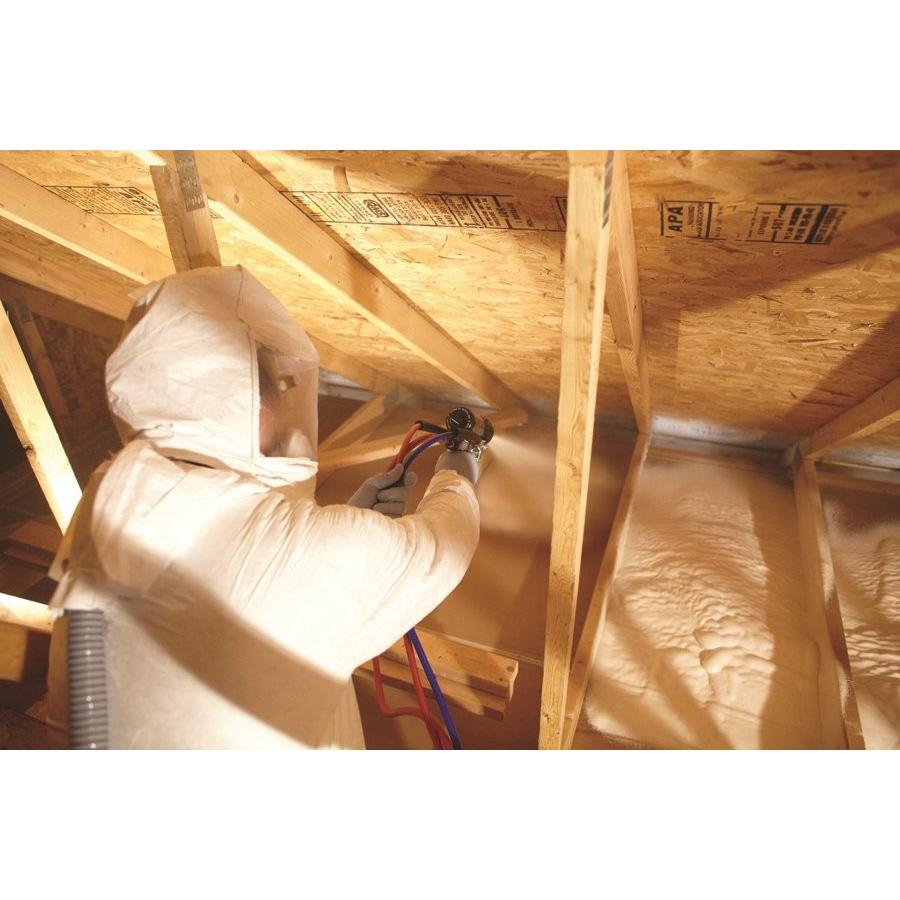

Equipped with material data and system diagnostics, the Reactor E-20 proportioner provides total control for spraying foam insulation. Advanced features provide longer equipment life, more uptime for your spray day, and the overall Graco reliability and durability you've come to expect. For low- to medium-output foam insulation applications - applies up to 20 lb (9 kg) per minute.
| Air Flow Rate | : | 20 Lpm |
| Amperage Rating | : | 48 A |
| Depth | : | 33 in |
| Fluid Inlet Size | : | 3/4 in |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 8.05 hp |
| Heater Wattage | : | 6 kW |
| Height | : | 46 in |
| Hose Length | : | 50 ft, 10 ft |
| Maximum Fluid Temperature | : | 190 deg F |
| Maximum Fluid Working Pressure | : | 2000 psi |
| Phase | : | 1 ph |
| Series | : | E-20 Series |
| Sound Level | : | 70.2 dBA |
| Voltage Rating | : | 230 V |
| Width | : | 31 in |
- Powerful hybrid heaters for better temperature control
- Circulation valves with longer-lasting seals
- Longer-lasting modular heater control boards that minimize downtime
- Hose heat transformer that doesn't require tap settings
- Easy to maneuver
- Quick knockdown lower pumps for easy maintenance
- Digital heat and pressure controls
