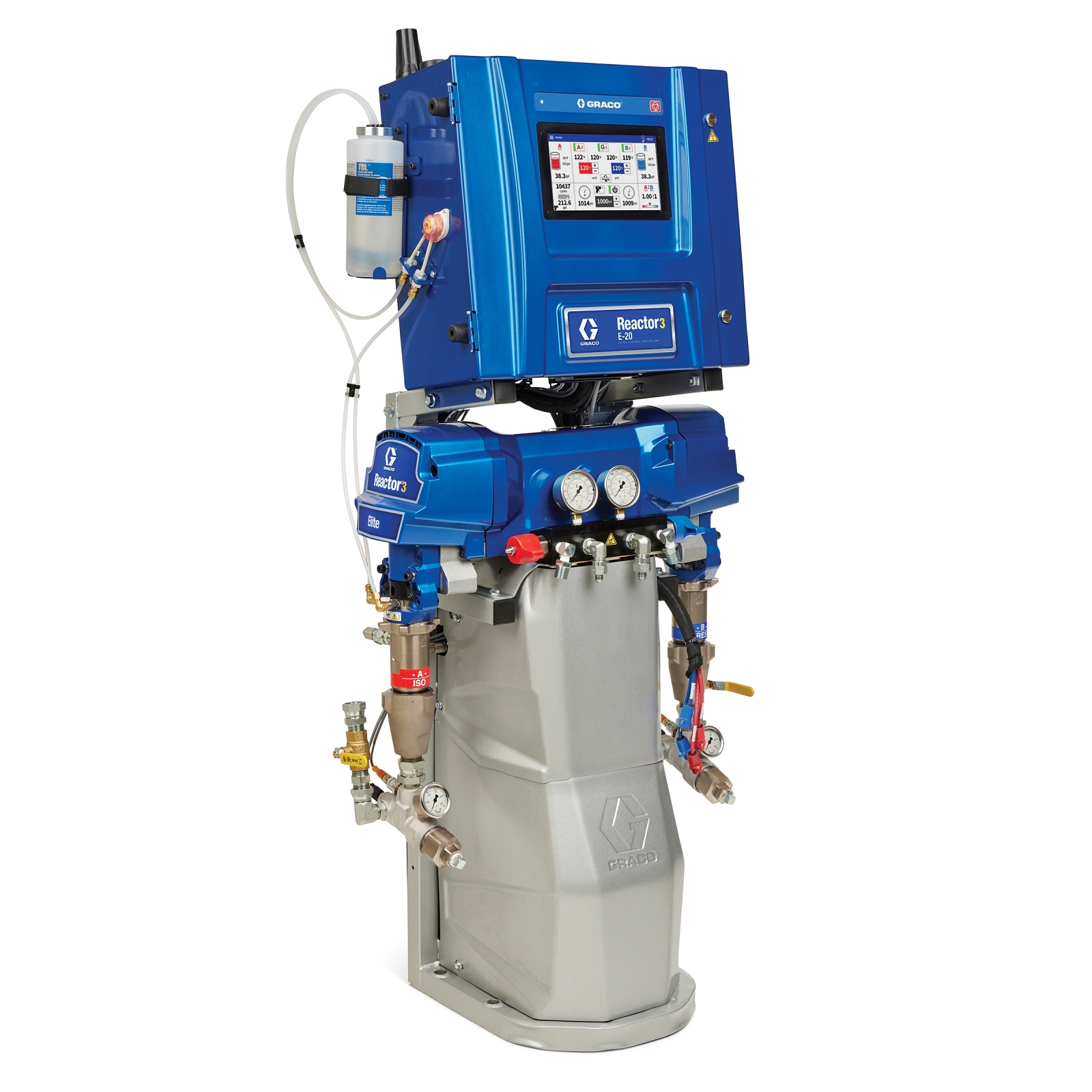

GRACO® E-20 Elite Series IHR312 Tier Spray Foam Proportioner Package
GRACO® E-20 Elite Series IHR312 Tier Spray Foam Proportioner Package
Manufacturer: Graco Inc
Brand Name: GRACO®
Part No.: GRIHR312
MPN: IHR312
Min. Order Qty: 1
My Branch: Orlando FL
Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required.
| Air Flow Rate | : | 20 Lpm |
| Amperage Rating | : | 24 A, 39 A, 65 A |
| Depth | : | 15 in |
| Frequency Rating | : | 50/60 Hz |
| Heater Wattage | : | 10 kW |
| Height | : | 56-1/2 in |
| Hose Length | : | 200 ft |
| Maximum Fluid Temperature | : | 190 deg F |
| Maximum Fluid Working Pressure | : | 2000 psi |
| Phase | : | 1 ph, 3 ph |
| Series | : | E-20 Elite Series |
| Voltage Rating | : | 200-240 V, 350-415 V |
| Width | : | 24.9 in |
- Katalyst full system communication and control that improves performance, ratio and yield. Requires Core E1 pumps
- Smart Supply - Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials
- Auto Pressure Balance - Automatically adjusts temperatures to optimize fluid pressures and maximize yield
- Power Management - Select desired heater wattage for reduced power consumption
- Cellular Software Updates - Automatically stay up to date with the latest Reactor software
- Touchscreen Advanced Display Module (ADM) - Large new touchscreen interface. Intuitive operation and navigation. All spray operations from one screen
- Independent Hose Control - Control A and B materials to different temperatures for improved pressure balancing. Optimizes yield
- Advanced Electric Design - Brushless motor for improved pressure/flow performance. New temperature control boards for independent hose heat. Voltage jumpers for easy changing between voltages. Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
- Reduced Size - Reduced footprint provides additional room in your rig. Compact design protects the flow meters and hose connections from being damaged in your rig
