Simpson Strong-Tie® PINWP-250W Powder-Actuated Washered Pin

Manufacturer: Simpson Strong-Tie

Brand Name: Simpson Strong-Tie®

Part No.: TLPINWP-250W

MPN: TLPINWP-250W

Min. Order Qty: 1

My Branch: Orlando FL

UOM:

Add to cart

Description
Specifications
Features

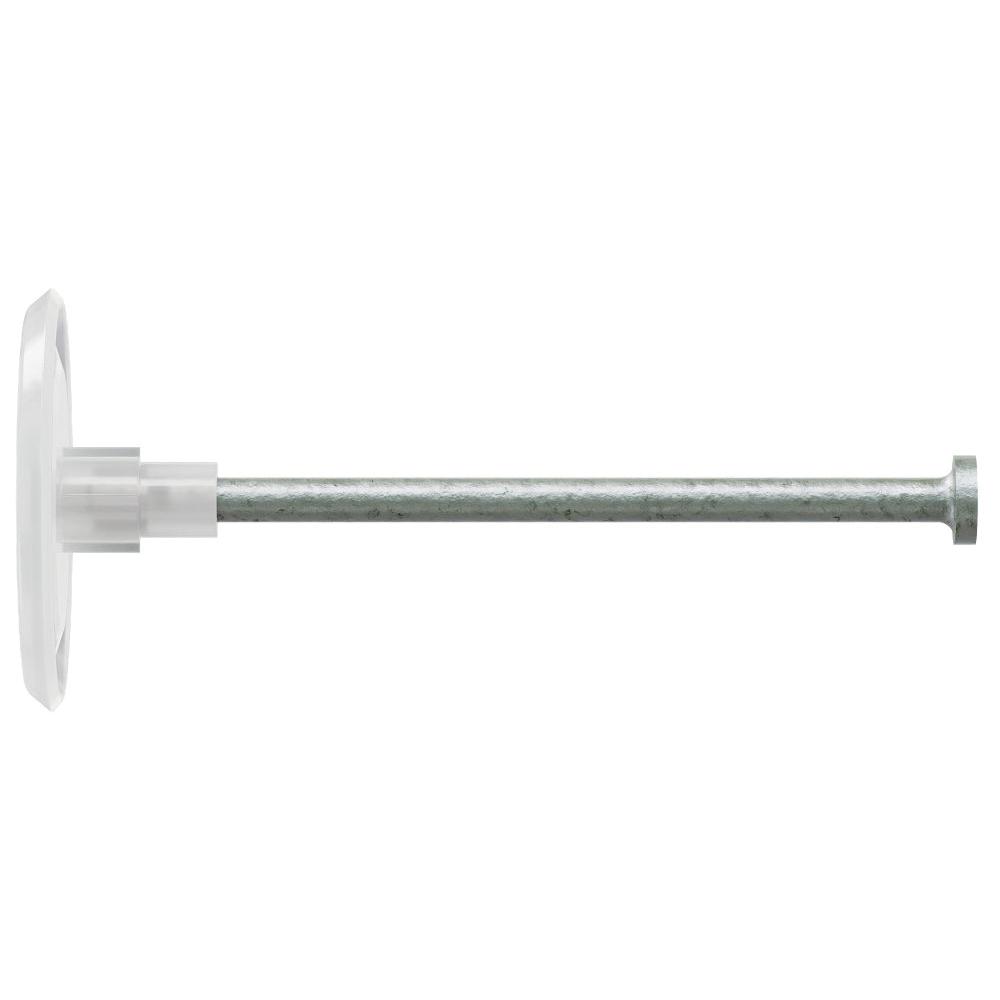

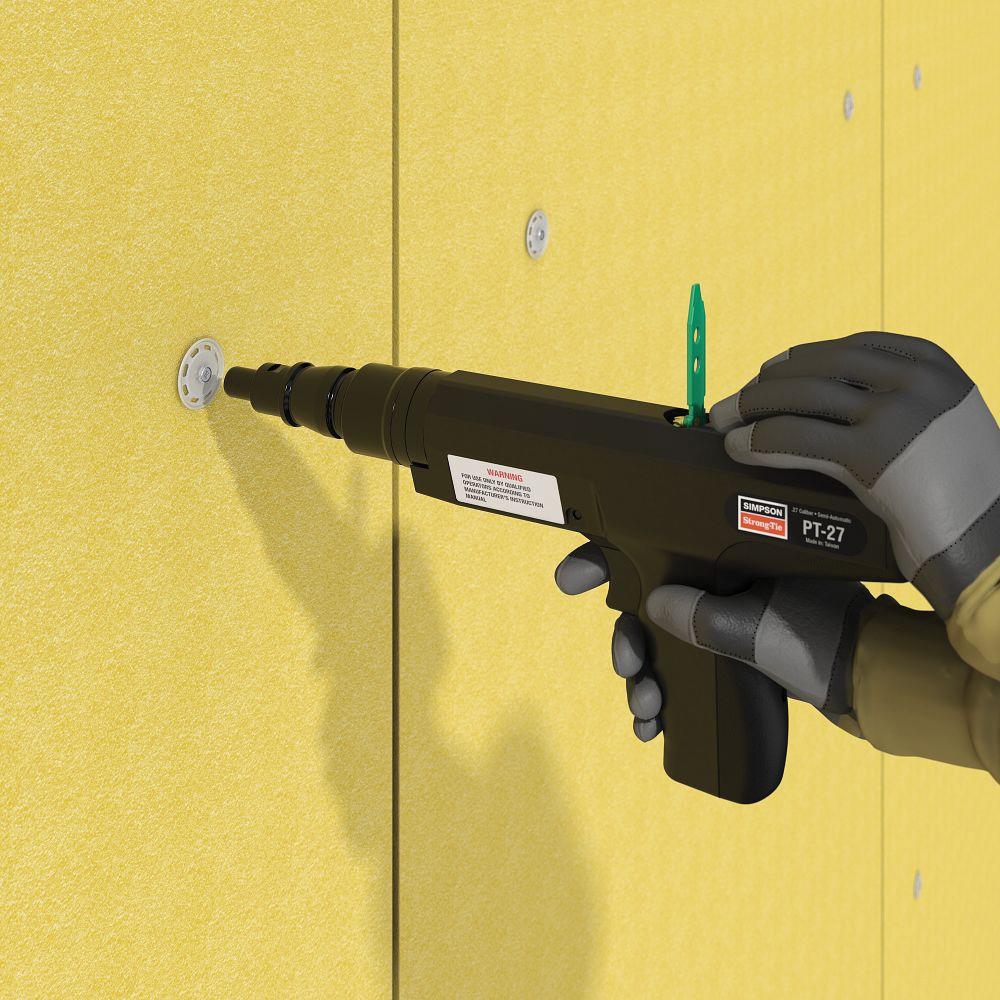

The PINWP is a powder-actuated washered pin designed to fasten rigid insulation board to building structures. The PINWP consists of a 0.300?-headed fastener with a pre-mounted 1 3/8? flat plastic washer. The PINWP is for high-volume applications and is designed for fastening into concrete and steel.

Simpson Strong-Tie Powder-Actuated Washered Pin, PINWP Series, 0.145 in Shank Diameter, 0.3 in Head Diameter, Plastic Washer, Applicable Materials: Concrete, Steel, For Use With: Model PTP-27L, PT-27, PT-22A, PT-22HA Insulation Boards, 2-1/2 in L

Additional Information	:	2-1/2 in L
Applicable Materials	:	Concrete, Steel
Head Diameter	:	0.3 in
Series	:	PINWP Series
Shank Diameter	:	0.145 in
Suitable For Use With	:	Model PTP-27L, PT-27, PT-22A, PT-22HA Insulation Boards
Washer Material	:	Plastic

The minimum effective shank length must equal or exceed the combined thickness of the attached material and the minimum embedment depth
Code listed per ICC-ES ESR-2138 and Florida FL15730
Designed for use with Simpson Strong-Tie® powder-actuated tools and compatible with many competitive tools
