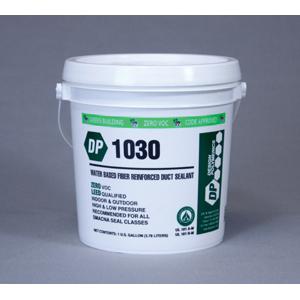

Design Polymerics DP1030 WHITE Duct Sealant
Design Polymerics DP1030 WHITE Duct Sealant
A UL Listed, Low VOC, fiber reinforced, water based, high pressure/high velocity duct sealant for commercial and residential supply and return air duct use. The consistency of DP 1030 allows for easier sealing of holes and gaps often found in duct connections and duct joints. It exceeds all SMACNA seal and pressure classes and is recommended up to 15 inches water gauge pressure.
Design Polymerics Duct Sealant, 1 gal Net Content, Pail Container, Composition: 30 to 45% Calcium Carbonate, 1 to 5% Talc (Mg3H2(SiO3)4), 0.1 to 1% Titanium Dioxide, <0.3% Quartz, 0.1 to 1% Ethanolamine, <=1% Triethanolamine, <=0.02% Aluminum Oxide (Al2O3), <=0.02% Acetaldehyde, <=0.01% Vinyl Acetate, Paste Form, White, Odor/Scent: Mild Sweet, Water Base, 24 to 72 hr Curing Time, 40 to 80 sq-ft Coverage Area, 8 to 9.5 pH, 11.5 to 12.5 Specific Gravity, 212 deg F Boiling Point, 32 deg F Freezing Point, <=3 g/L VOC, 300000 to 400000 cPs Viscosity, 2 years Shelf Life, -25 to 200 deg F
| Base Type | : | Water |
| Boiling Point | : | 212 deg F |
| Color | : | White |
| Composition | : | 30 to 45% Calcium Carbonate, 1 to 5% Talc (Mg3H2(SiO3)4), 0.1 to 1% Titanium Dioxide, <0.3% Quartz, 0.1 to 1% Ethanolamine, <=1% Triethanolamine, <=0.02% Aluminum Oxide (Al2O3), <=0.02% Acetaldehyde, <=0.01% Vinyl Acetate |
| Container Type | : | Pail |
| Coverage Area | : | 40 to 80 sq-ft |
| Curing Time | : | 24 to 72 hr |
| Form | : | Paste |
| Freezing Point | : | 32 deg F |
| Net Content | : | 1 gal |
| Odor/Scent | : | Mild Sweet |
| Shelf Life | : | 2 years |
| Specific Gravity | : | 11.5 to 12.5 |
| Temperature Rating | : | -25 to 200 deg F |
| VOC Content | : | <=3 g/L |
| Viscosity | : | 300000 to 400000 cPs |
| pH Range | : | 8 to 9.5 |
- Fibered consistency for easier sealing of holes and gaps.
- GREENGUARD Gold Certified.
